A vertical water heater for diesel generator is an electric heating device installed in the engine cooling circuit. It keeps the coolant warm while the genset sits idle, ensuring reliable cold starts and reducing engine wear. For anyone sourcing generator accessories in cold-climate markets, this component is not optional—it is the difference between a generator that starts in seconds and one that fails when power is needed most.
This guide covers how these heaters work, how to size them correctly, and what to look for when sourcing from a supplier.

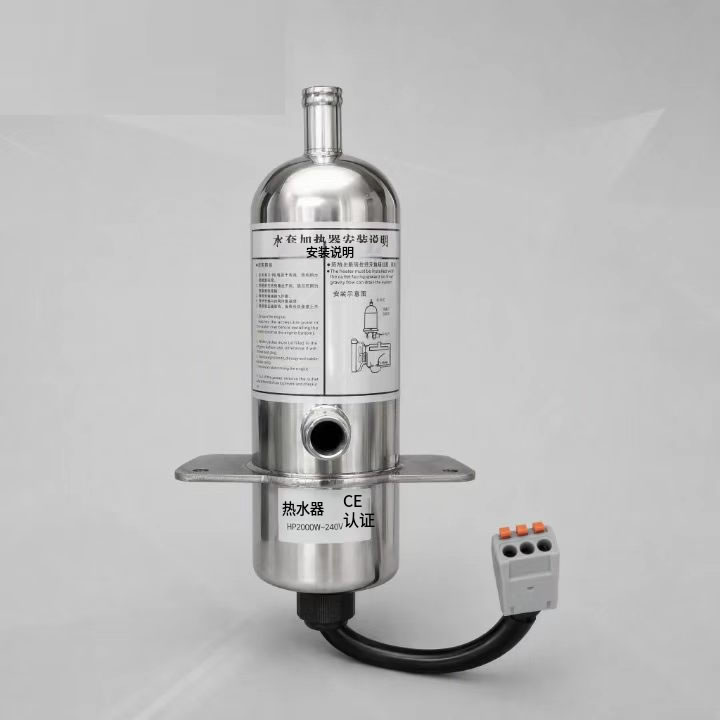

A vertical water heater—also called a jacket water heater, engine block heater, or coolant heater—is a heating element installed in the generator’s cooling system. While the unit is idle, the heater maintains the coolant temperature at a preset level, typically between 38°C and 60°C (100°F to 140°F) -7-11.
The “vertical” designation refers to the physical orientation of the heater unit. Unlike horizontal models that mount along the engine block, vertical heaters are designed for installation in confined spaces where a vertical mounting position is the only practical option. This makes them particularly common in containerized generator sets, marine applications, and compact industrial enclosures.
Diesel engines rely on compression heat to ignite fuel. When the engine block is cold, this process becomes inefficient and damaging. A water heater addresses several critical problems:
Cold-start wear. Cold oil is thick and flows slowly. At startup, pistons, liners, and bearings can run with inadequate lubrication for several seconds—a brief but repeated wear event that shortens overhaul intervals -7.
White smoke and carbon buildup. Cold cylinders atomize fuel poorly, leading to incomplete combustion. This appears as white smoke at startup and leaves carbon deposits that degrade performance over time -7.
Start failure in extreme cold. Below -10°C, a diesel generator without a heater may crank for extended periods or fail to start entirely. For standby applications—hospitals, data centers, telecom towers—this is not an inconvenience; it is a critical failure -11.
Delayed load acceptance. A cold engine needs a warm-up period before it can safely accept full load. In automatic transfer scenarios where the generator must carry load within seconds, pre-warming is essential -7.
The operating principle is straightforward: a resistive heating element warms the coolant, and circulation distributes that heat through the engine block.
Thermosiphon (natural circulation). Heated coolant becomes less dense and rises, drawing cooler coolant into the heating chamber. No pump is required. This design is simple, reliable, and energy-efficient—well-suited to small and medium generators -7-11.
Forced circulation. A small integrated pump actively drives heated coolant through the engine jacket. This provides faster, more uniform heating and is typically specified for larger generator sets or complex cooling systems -7.
A built-in thermostat cycles the heater on and off to maintain the target temperature, so the unit operates automatically as long as power is supplied.
Key Specifications Buyers Should Verify
When sourcing a vertical water heater, these specifications determine whether the unit will perform correctly:
Power rating Typically 500W to 3000W. Match to engine displacement and ambient conditions.
Voltage 120V, 240V, or 220–380V depending on region and generator electrical system.
Inlet/outlet size Must match the coolant hose or pipe connections on the specific generator model.
Thermostat range Common settings: 35–45°C for standby units; higher for specific applications.
Material Stainless steel or corrosion-resistant casing for durability in harsh environments.
Mounting orientation Confirm the unit is rated for vertical installation.
Applications and Compatibility
Vertical water heaters serve generators across a broad range of industries:
Residential and commercial backup power. Ensuring automatic start capability in cold climates.
Healthcare and data centers. Where power interruption is not an option -11.
Telecom towers and remote sites. Unattended operation demands reliable cold starting.
Construction and agriculture. Portable and mobile generators exposed to weather.
Marine and offshore. Harsh conditions and confined engine rooms.
Compatibility depends primarily on coolant connection size, voltage, and physical mounting space. When sourcing, provide your supplier with the generator make, model, and engine displacement to confirm fitment.
Frequently Asked Questions
Q: Can a vertical water heater be installed on any diesel generator？
Not universally. The heater must match the engine’s coolant connection size, voltage, and available mounting space. Vertical orientation is specifically chosen when horizontal mounting is not feasible due to clearance constraints.
Q: Does the generator need to be running for the heater to work？
No. The heater operates from mains power while the generator is idle. It maintains temperature continuously so the unit is ready to start at any moment.
Q: How long does installation take？
A typical installation involves draining some coolant, mounting the heater, connecting inlet/outlet hoses, and wiring to a power source. For a qualified technician, this is usually a 1–2 hour job.
Q: What is the difference between a water heater and an oil pan heater？
A water heater warms the engine coolant to raise overall block temperature. An oil pan heater warms the oil directly to reduce viscosity. In cold regions, both are often specified together -7.
Why Source Vertical Water Heaters from generators-parts.com
At generators-parts.com, we supply generator accessories built for reliability in demanding conditions. Our vertical water heaters are designed for easy installation, consistent performance, and long service life.
We understand that buyers in this market need exact specifications, not marketing language. That is why every product listing includes:
Full technical specifications in searchable HTML format
Compatibility guidance by generator make and model
Clear inlet/outlet dimensions and voltage options
Direct access to datasheets and installation documentation
Ready to request a quote？ Send us your generator model and required specifications, and our team will confirm fitment and pricing within one business day.
