When a diesel generator suddenly picks up a heavy load — or drops one — the engine speed can spike or sag within milliseconds. Without a reliable speed control unit, that fluctuation translates into voltage instability, equipment damage, and costly downtime. The ESD5500E Electronic Motor Speed Governor is engineered to solve exactly this problem.

In this comprehensive guide, we'll walk you through everything you need to know about the UPONV ESD5500E — from its core specifications and working principles to real-world applications, installation tips, and why it has become a go-to choice for generator OEMs and maintenance professionals worldwide.

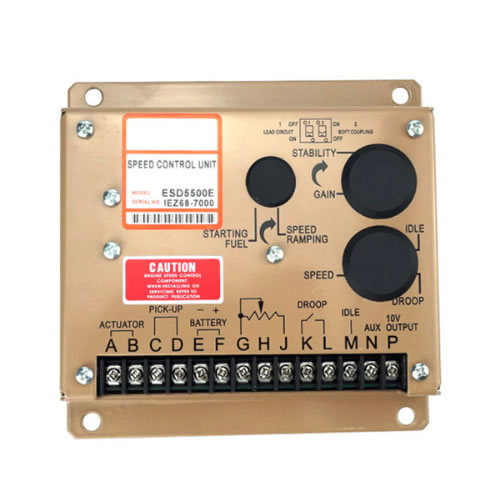

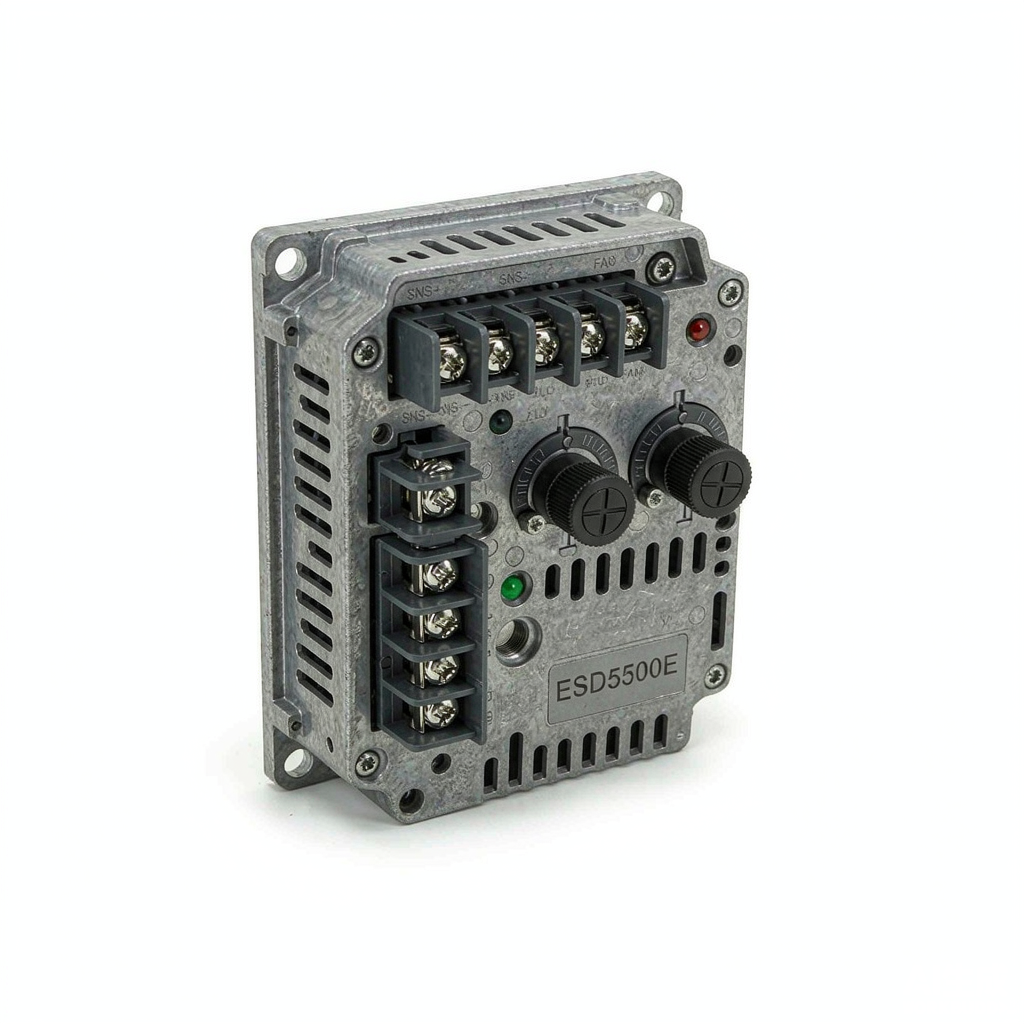

Figure 1: UPONV ESD5500E Electronic Speed Control Unit — compact, robust, ISO9001 certified.

What Is the ESD5500E Speed Control Unit?

The ESD5500E belongs to the renowned 5500E Series of all-electronic speed control units. Its primary function is to control engine speed with fast and precise response to transient load changes. In simple terms, it acts as the "brain" that keeps your diesel generator running at a constant RPM, regardless of how much electrical load is applied or removed.

Unlike mechanical governors that rely on flyweights and springs — which wear out and lose accuracy over time — the ESD5500E uses solid-state electronic circuitry to monitor engine speed via a magnetic pickup sensor and adjust fuel flow through an electronic actuator. The result is isochronous operation: rock-steady speed with virtually no drift.

Key Features & Technical Specifications

Let's break down what makes the ESD5500E stand out in the crowded speed control market:

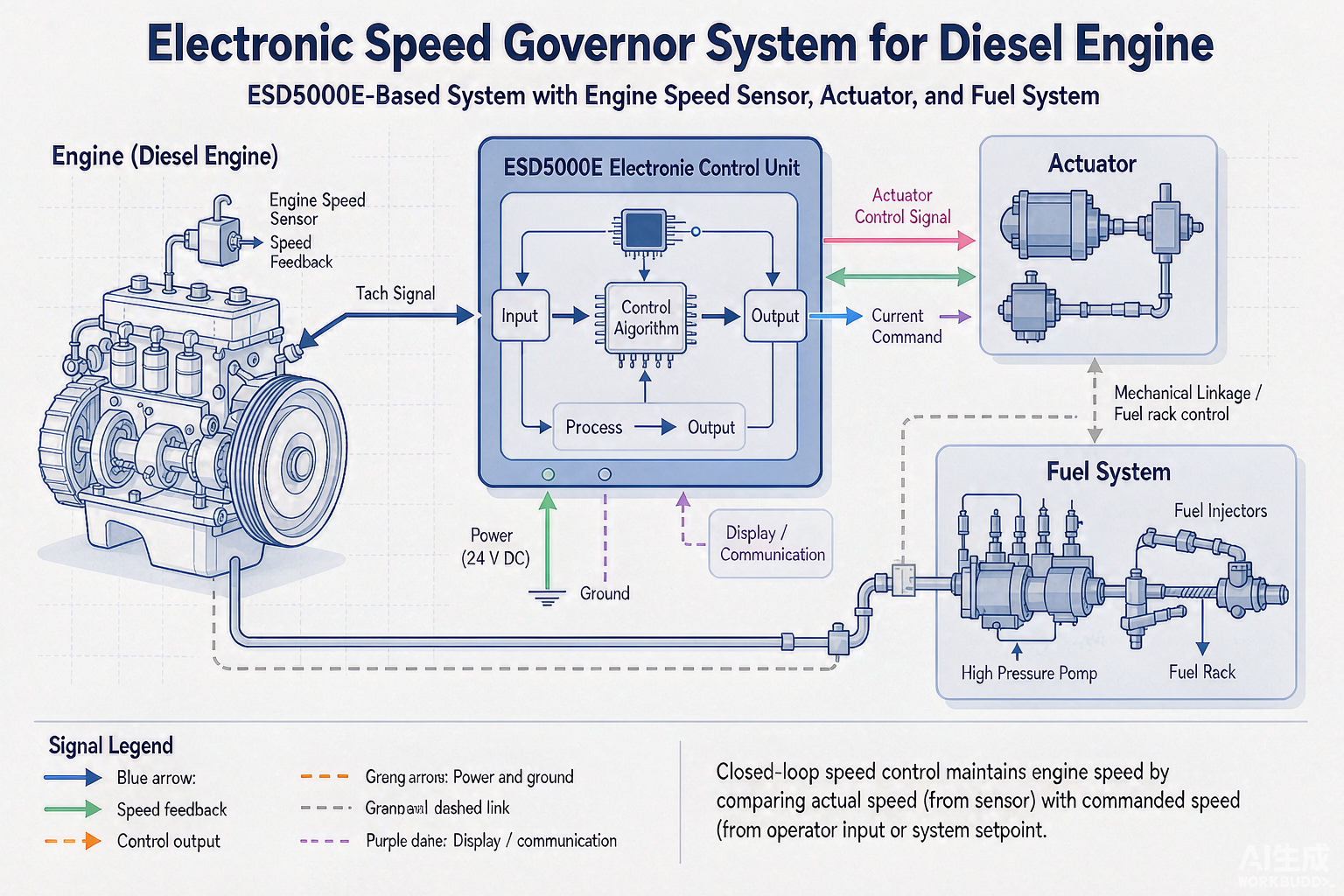

Figure 2: How the ESD5500E speed governor system works — from speed sensor to fuel actuator.

1. Isochronous Operation & Steady Stability

The ESD5500E delivers /-0.25% or better steady-state stability. This means that even when your generator's electrical load jumps from 20% to 80% rated capacity, the engine speed recovers to its set point with minimal deviation. For applications requiring tight frequency regulation — such as medical facilities, data centers, and precision manufacturing — this level of stability is non-negotiable.

2. Flexible Power Supply

The unit operates on both 12 VDC and 24 VDC battery systems, making it compatible with virtually any diesel generator configuration. It is transient and reverse voltage protected, so a momentary voltage spike or accidental polarity reversal won't fry the board.

3. Low Power Consumption

With a continuous draw of only 50 mA (plus actuator current), the ESD5500E puts minimal load on your battery system — an important consideration for long-running standby generators.

4. High Actuator Current Capacity

The unit can drive actuators drawing up to 10 Amps continuous at 25°C (77°F). This is sufficient for most common electronic actuators used on diesel engines ranging from small standby units to medium-sized industrial gensets.

5. Compatibility with EFC Series

For users with EFC (Electronic Fuel Control) series actuators, the ESD5520E variant is specifically designed to integrate seamlessly, offering plug-and-play compatibility.

Full Specification Table

Parameter	Specification
Model Number	ESD5500E
Brand	UPONV
Speed Control Type	All-Electronic, Isochronous
Steady-State Stability	/-0.25% or better
Power Supply	12 or 24 VDC Battery Systems
Voltage Protection	Transient & Reverse Voltage Protected
Power Consumption	50 mA continuous actuator current
Max Actuator Current	10 Amps continuous @ 25°C (77°F)
Compatible Actuator Series	EFC Series (ESD5520E variant)
Certificate	ISO9001
Stock Status	In Stock — Ready to Ship

Applications: Where Is the ESD5500E Used?

The ESD5500E is deployed across a wide range of industries where stable diesel engine speed is critical:

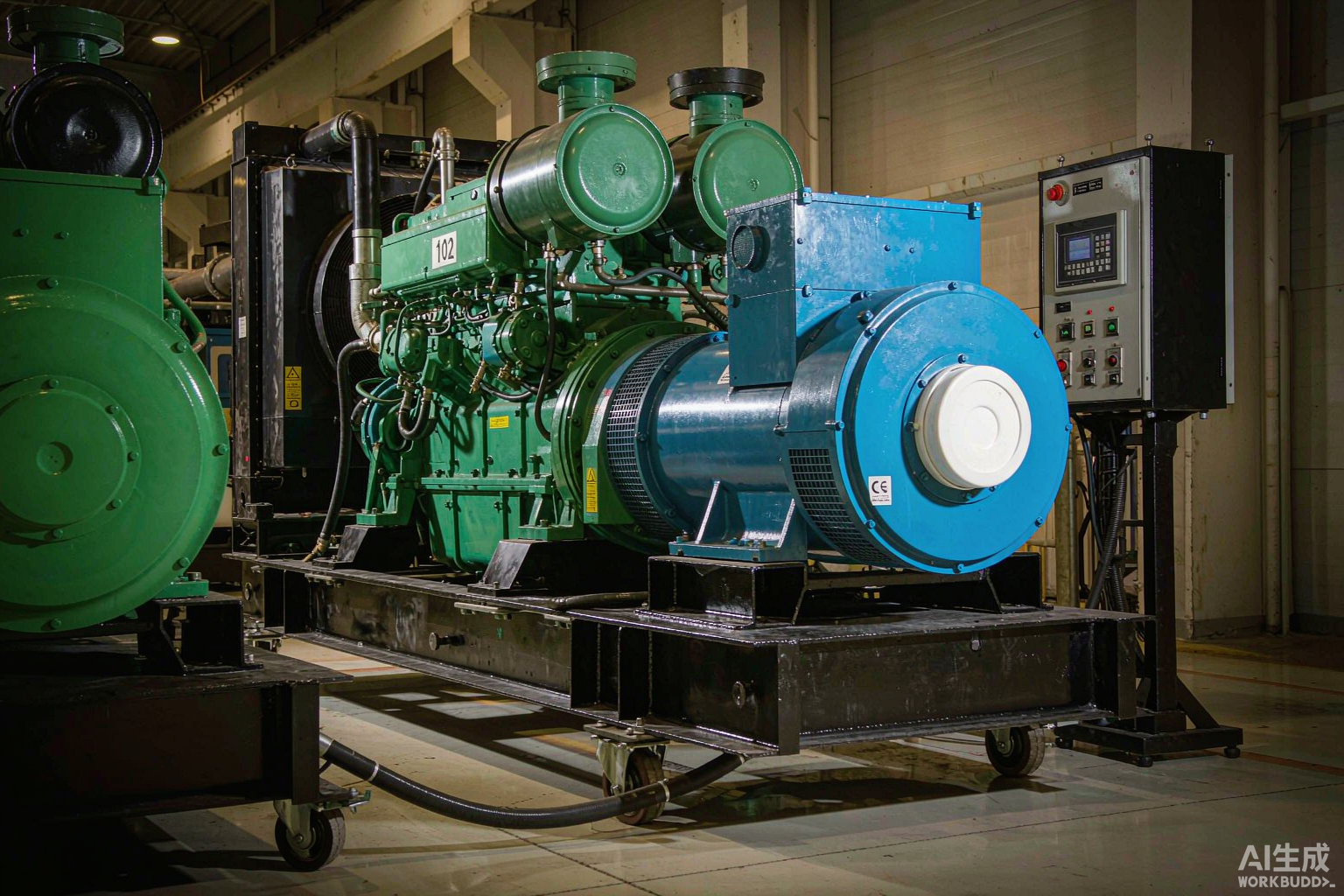

Figure 3: Industrial diesel generator set — the ESD5500E keeps engine speed stable under varying loads.

• Standby & Emergency Power Systems: Hospitals, data centers, and telecom facilities rely on generators that must start and stabilize within seconds. The ESD5500E's fast transient response ensures the generator reaches stable frequency almost immediately after startup.
• Marine & Shipboard Generators: Marine applications demand rugged, vibration-resistant electronics. The ESD5500E's solid-state design handles the harsh marine environment with no moving parts to wear out.
• Industrial Manufacturing: Factories with variable load profiles — think welding shops, CNC machining centers, and motor starting applications — benefit from the /-0.25% speed stability that prevents brownouts and equipment resets.
• Construction & Mining: Remote sites running on diesel gensets need reliable speed control that works in dust, heat, and humidity. The ESD5500E's rugged construction and wide operating temperature range make it ideal for these environments.
• Agricultural Pumping Stations: Irrigation pumps driven by diesel engines require consistent speed to maintain proper water pressure and flow rates.

Why Choose the UPONV ESD5500E?

With dozens of speed control units on the market, why has the ESD5500E become a preferred choice among generator professionals?

Proven Reliability

The 5500E Series has been deployed in thousands of generator installations worldwide. Its all-electronic design eliminates the mechanical failure points of traditional governors — no flyweights to wear, no linkages to bind, no springs to fatigue.

ISO9001 Certified Quality

Every UPONV ESD5500E is manufactured under an ISO9001-certified quality management system. This means consistent production standards, documented processes, and traceable quality control — giving you confidence that each unit will perform as specified.

Easy Installation & Adjustment

The ESD5500E features accessible potentiometer adjustments for gain, stability, and speed setting. Most installations can be completed and tuned in under an hour by a qualified technician. The unit's compact form factor fits easily into existing control panels.

In Stock & Ready to Ship

Downtime is expensive. That's why we keep the UPONV ESD5500E in stock and ready for immediate shipment. No long lead times, no waiting weeks for a factory order.

Installation & Tuning Guide

Proper installation is key to getting the best performance from your ESD5500E. Here's a quick overview of the process:

Step 1: Mount the Unit

Install the ESD5500E in a clean, dry location within the generator's control panel. Ensure adequate ventilation and keep it away from extreme heat sources like the engine exhaust manifold.

Step 2: Connect the Magnetic Pickup

Wire the magnetic speed sensor to the appropriate terminals on the ESD5500E. The sensor typically threads into the engine's flywheel housing and generates an AC signal proportional to engine RPM.

Step 3: Connect the Actuator

Wire the electronic actuator to the unit's output terminals. Verify that the actuator is compatible with the ESD5500E's 10-amp current rating.

Step 4: Connect Power

Connect the 12 or 24 VDC battery supply. Double-check polarity — although the unit is reverse-voltage protected, correct wiring is always best practice.

Step 5: Start & Tune

Start the engine and adjust the Speed potentiometer to reach the desired RPM. Then fine-tune Gain and Stability controls for optimal transient response. Apply step load changes and verify that speed recovery is within specification.

ESD5500E vs. Other Speed Control Units

How does the ESD5500E compare to alternatives on the market?

Feature	UPONV ESD5500E	Typical Mechanical Governor
Speed Stability	/-0.25% or better	/-2% to /-5%
Transient Response	Fast electronic response	Slow mechanical lag
Wear & Maintenance	No moving parts — zero wear	Linkages, springs wear out
Adjustability	Precise potentiometer tuning	Limited mechanical adjustment
ISO9001 Certified	Yes	Varies by manufacturer
Availability	In stock — ready to ship	Often long lead times
